Agricultural spraying technology has come a long way, revolutionizing crop protection and enhancing farm productivity. Modern sprayers offer precision, efficiency, and environmental stewardship that were unimaginable just a few decades ago. By leveraging advanced features and intelligent design, these tools enable farmers to apply pesticides, herbicides, and fertilizers with unprecedented accuracy, minimizing waste and maximizing crop yields.
As the global population continues to grow, the demand for sustainable and efficient farming practices has never been greater. Modern sprayers play a crucial role in meeting this challenge, allowing farmers to protect their crops while reducing chemical usage and environmental impact. From self-propelled behemoths that can cover vast acreages to nimble drone sprayers that access hard-to-reach areas, today’s sprayer technology offers solutions for farms of all sizes and types.
Evolution of agricultural sprayer technology
The journey of agricultural sprayers from simple hand-pumped devices to sophisticated precision instruments is a testament to human ingenuity and technological progress. Early sprayers were often little more than pressurized containers with a nozzle, requiring significant manual labor and offering limited control over application rates. As farming operations expanded and the need for efficiency grew, so did the complexity and capability of spraying equipment.
The introduction of tractor-drawn sprayers in the mid-20th century marked a significant leap forward, allowing farmers to cover larger areas more quickly. However, these early mechanized sprayers still lacked precision, often resulting in overspraying and chemical waste. The advent of hydraulic systems and improved pump technology in the 1970s and 1980s brought greater control over spray patterns and application rates, setting the stage for the precision agriculture revolution.
Today’s modern sprayers are marvels of engineering, incorporating GPS guidance, computer-controlled application systems, and advanced sensor technology. These features enable farmers to apply crop protection products with pinpoint accuracy, adjusting application rates on the fly based on factors such as crop health, soil conditions, and pest pressure. The result is a more efficient, cost-effective, and environmentally friendly approach to crop protection.
Types of modern crop protection sprayers
The diversity of modern sprayers reflects the varied needs of today’s agricultural operations. From small-scale organic farms to vast industrial croplands, there’s a sprayer designed to meet specific requirements. Let’s explore some of the most advanced and popular types of sprayers currently available.

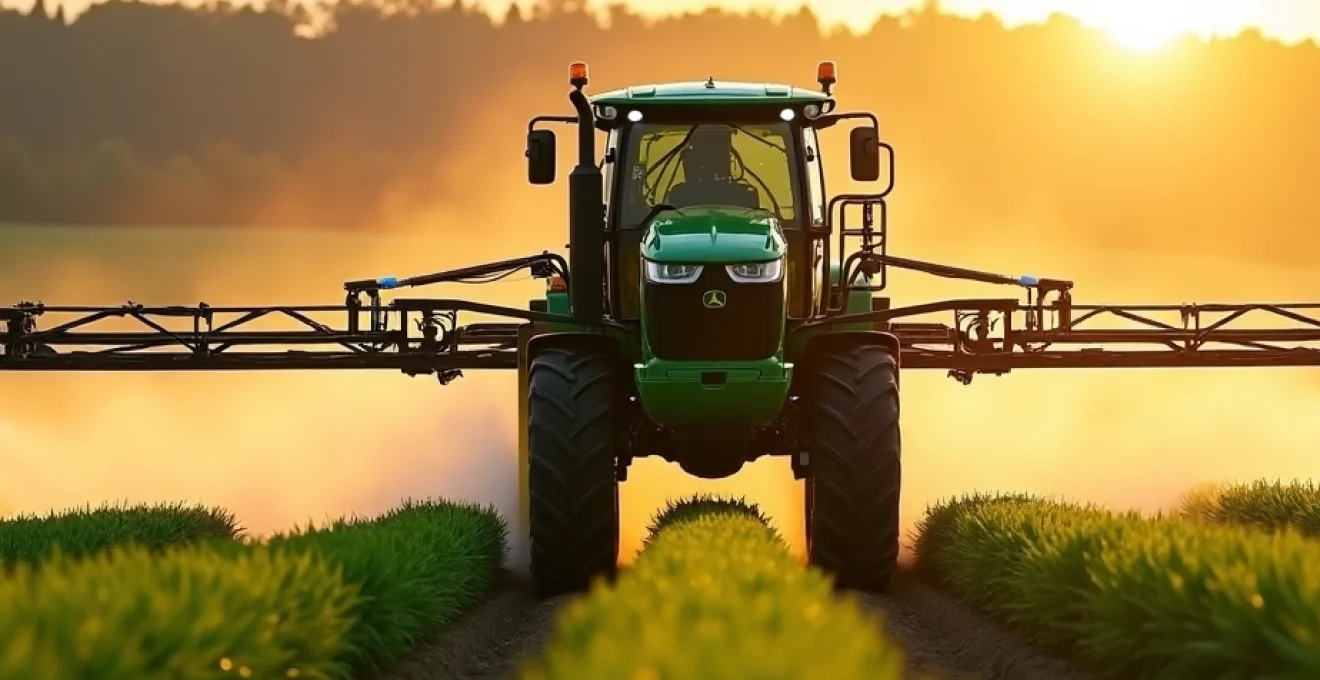

Self-propelled sprayers: john deere R4060 and case IH patriot 4440
Self-propelled sprayers represent the pinnacle of high-capacity, high-efficiency crop protection technology. These machines are designed for large-scale operations where covering vast acreages quickly and accurately is paramount. The John Deere R4060 and Case IH Patriot 4440 are prime examples of this category, offering impressive features that maximize productivity and precision.
The John Deere R4060 boasts a massive 6,000-liter tank capacity and a boom width of up to 36 meters, allowing it to cover large areas with minimal refilling stops. Its advanced ExactApply nozzle control system ensures precise application even at high speeds, while the integrated CommandView III cab provides operators with a comfortable, high-tech command center for managing all aspects of the spraying operation.
Similarly, the Case IH Patriot 4440 offers a 6,057-liter tank and boom widths up to 36 meters. It features the AIM Command FLEX spray system, which maintains consistent droplet size and spray pattern regardless of speed or terrain changes. Both machines incorporate advanced GPS guidance and automated section control to minimize overlap and reduce chemical waste.
Trailed sprayers: amazone UX and hardi commander
Trailed sprayers offer a balance of capacity and maneuverability, making them suitable for a wide range of farm sizes and types. These sprayers are pulled behind a tractor, combining the power and familiarity of existing farm equipment with advanced spraying technology.
The Amazone UX series exemplifies the cutting-edge features available in modern trailed sprayers. With tank capacities ranging from 3,200 to 11,200 liters and boom widths up to 40 meters, these sprayers can handle substantial workloads. The UX series incorporates Amazone’s SmartCenter control system, which simplifies operation and ensures precise application. The ContourControl active boom guidance system maintains optimal boom position even in challenging terrain, enhancing application accuracy and reducing drift.
Hardi’s Commander series offers similar capabilities, with tank sizes from 3,500 to 7,000 liters and boom widths up to 36 meters. The Commander features Hardi’s AutoHeight boom control system and DynamicFluid4 liquid system, which work together to maintain consistent application rates across varying field conditions and speeds.
Mounted sprayers: kuhn deltis 2 and lemken sirius 9
Mounted sprayers are designed for smaller to medium-sized farms or operations where maneuverability and compact design are crucial. These sprayers attach directly to the tractor’s three-point hitch, making them ideal for navigating tight spaces or working in orchards and vineyards.
The Kuhn Deltis 2 is a prime example of a modern mounted sprayer, offering tank capacities from 1,000 to 1,800 liters and boom widths up to 24 meters. Despite its compact size, the Deltis 2 incorporates advanced features such as ISOBUS compatibility for seamless integration with tractor control systems and section control for precise application.
Lemken’s Sirius 9 mounted sprayer provides similar capabilities, with tank sizes ranging from 900 to 1,900 liters and boom widths up to 21 meters. The Sirius 9 features Lemken’s EasySet control panel, which simplifies operation and calibration, making it accessible for operators of all skill levels.
Drone sprayers: DJI agras T30 and XAG P40 agricultural drone
Drone sprayers represent the cutting edge of precision agriculture, offering unparalleled access to difficult terrain and the ability to apply treatments with extreme precision. These aerial platforms are particularly useful for spot treatments, edge spraying, and managing crops in areas where traditional ground-based equipment cannot easily operate.
The DJI Agras T30 is a powerhouse among agricultural drones, capable of carrying up to 30 liters of liquid payload. With a spraying width of 9 meters and the ability to cover up to 40 acres per hour, the T30 combines efficiency with precision. Its intelligent flight systems and obstacle avoidance technology ensure safe operation even in complex environments.
The XAG P40 Agricultural Drone offers similar capabilities, with a 40-liter payload capacity and the ability to spray up to 20 hectares per hour. The P40 features a unique rotary atomization spraying system that produces uniformly-sized droplets for optimal coverage and reduced drift.
Advanced sprayer features for precision agriculture
Modern sprayers are equipped with a suite of advanced features that enable unprecedented levels of precision and efficiency in crop protection. These technologies not only improve the effectiveness of treatments but also contribute to reduced chemical usage and environmental impact.
Gps-guided Auto-Steering and section control
GPS guidance systems have revolutionized spraying operations by enabling precise navigation and automated control. Auto-steering technology allows sprayers to follow predetermined paths with centimeter-level accuracy, reducing operator fatigue and minimizing overlap or missed areas. This precision is particularly valuable when working in low-visibility conditions or at night.
Section control takes this precision a step further by automatically turning individual boom sections or nozzles on and off based on the sprayer’s position in the field. This technology prevents double-spraying in areas that have already been treated, such as headlands or irregular field shapes, resulting in significant chemical savings and reduced environmental impact.
Variable rate application (VRA) technology
Variable Rate Application allows sprayers to adjust application rates in real-time based on predefined prescription maps or sensor inputs. This technology takes into account factors such as soil type, crop health, and pest pressure to apply the optimal amount of product to each area of the field.
VRA systems typically use a combination of GPS positioning and either pre-loaded field maps or real-time sensor data to determine the appropriate application rate. Advanced systems can even integrate data from multiple sources, such as yield maps, satellite imagery, and soil samples, to create highly detailed prescription maps for precise product application.
Pulse width modulation (PWM) nozzle systems
Pulse Width Modulation technology represents a significant advancement in spray nozzle control. PWM systems rapidly pulse the spray nozzles on and off, allowing for precise control of flow rate without changing pressure or droplet size. This capability enables sprayers to maintain consistent coverage and droplet size across a wide range of speeds and application rates.
PWM systems like the John Deere ExactApply or Capstan Ag’s PinPoint offer benefits such as turn compensation (applying more product to the outer boom sections during turns) and individual nozzle control for ultra-precise application. These systems can significantly reduce chemical waste and improve overall application accuracy.
Integrated tank mixing and direct injection systems
Modern sprayers often feature integrated systems for on-the-go tank mixing and direct chemical injection. These systems allow operators to mix chemicals directly in the sprayer tank or inject concentrated products into the spray line just before application. This capability offers several advantages, including reduced chemical exposure for operators, the ability to quickly adjust mix ratios in the field, and simplified equipment cleaning processes.
Direct injection systems, in particular, offer the flexibility to apply multiple products at varying rates across a field without the need for premixing. This can be especially valuable when dealing with complex pest management scenarios or when applying fertilizers with varying nutrient ratios across different field zones.
Nozzle selection and spray drift reduction techniques
Selecting the right nozzles and implementing effective drift reduction techniques are crucial aspects of modern spraying operations. The choice of nozzle can significantly impact spray coverage, droplet size, and the potential for off-target drift. As environmental concerns and regulatory pressures increase, adopting technologies and practices that minimize drift has become a priority for farmers and equipment manufacturers alike.
Air induction nozzles: teejet AI and hypro guardian air
Air induction nozzles have become increasingly popular due to their ability to produce larger droplets that are less prone to drift while maintaining good coverage. These nozzles work by drawing air into the liquid stream, creating air-filled droplets that are larger and heavier than conventional spray droplets.
The Teejet AI (Air Induction) series and Hypro Guardian Air nozzles are excellent examples of this technology. These nozzles can reduce drift by up to 90% compared to standard flat fan nozzles while still providing effective coverage. The larger droplets produced by air induction nozzles are particularly useful when applying systemic products or when spraying in windy conditions.
Air induction nozzles represent a significant advancement in spray technology, offering a balance between drift reduction and effective coverage that was previously difficult to achieve.
Dual fan nozzles: syngenta 3D nozzle technology
Dual fan nozzles, such as Syngenta’s 3D Nozzle Technology, offer another approach to improving spray coverage while reducing drift. These nozzles produce two distinct spray patterns – typically one angled forward and one angled backward – which provide better coverage of vertical surfaces and penetration into dense canopies.
The Syngenta 3D nozzle, for example, combines a conventional flat fan spray with a smaller angled spray. This design improves coverage on the front and back of leaves and stems, potentially increasing the efficacy of crop protection products. The dual spray pattern also helps to reduce drift by creating a more targeted application with less fine droplets prone to off-target movement.
Environmental impact and sustainable spraying practices
As the agricultural industry faces increasing scrutiny over its environmental impact, adopting sustainable spraying practices has become a critical focus for farmers and equipment manufacturers. Modern sprayer technology plays a vital role in minimizing the environmental footprint of crop protection activities while maintaining or improving efficacy.
Integrated pest management (IPM) strategies
Integrated Pest Management is a holistic approach to crop protection that combines biological, cultural, physical, and chemical tools to minimize economic, health, and environmental risks. Modern sprayers support IPM strategies by enabling precise, targeted applications of crop protection products only when and where they are needed.
Advanced sensing technologies, such as crop health sensors and pest detection systems , can be integrated with sprayer control systems to identify problem areas in real-time. This allows for spot treatments or variable rate applications that significantly reduce overall chemical usage while maintaining effective pest control.
Buffer zone management and drift reduction agents (DRAs)
Buffer zones – areas near sensitive habitats or water bodies where pesticide application is restricted – are an important tool for protecting the environment. Modern sprayers equipped with GPS and automatic section control can precisely manage these zones, automatically shutting off nozzles when entering restricted areas.
Drift Reduction Agents (DRAs) are additives that can be mixed with spray solutions to reduce the proportion of fine droplets prone to drift. When used in conjunction with appropriate nozzle selection and sprayer settings, DRAs can significantly reduce off-target movement of crop protection products.
Closed transfer systems: easyconnect and ECOPIC
Closed Transfer Systems (CTS) are designed to minimize operator exposure to chemicals and reduce the risk of spills during the filling and mixing process. Systems like easyconnect and ECOPIC allow for the safe transfer of products from their original containers directly into the sprayer tank without the need for open pouring.
These systems not only improve operator safety but also help prevent environmental contamination from spills and reduce the amount of waste packaging. As regulatory pressures increase, the adoption of CTS is likely to become more widespread across the agricultural industry.
Regulatory compliance and operator safety in modern spraying
Regulatory compliance and operator safety are paramount concerns in modern agricultural spraying operations. As environmental regulations become more stringent and public awareness of pesticide use grows, farmers must navigate a complex landscape of legal requirements and best practices.
Modern sprayers incorporate numerous features designed to enhance operator safety and facilitate regulatory compliance. These include enclosed cabs with advanced filtration systems to protect operators from chemical exposure, automated record-keeping systems to track application rates and locations, and integrated wash-down systems for safe and efficient equipment cleaning.
Training and certification programs for sprayer operators have also become increasingly important. Many countries now require operators to undergo regular training and certification to ensure they are up-to-date with the latest safety protocols and application techniques. This focus on education and skill development is crucial for maximizing the benefits of advanced sprayer technology while minimizing risks to human health and the environment.
The integration of safety features and compliance tools in modern sprayers not only protects operators and the environment but also helps farmers maintain the social license to operate in an increasingly scrutinized industry.
As we look to the future, the evolution of sprayer technology shows no signs of slowing down. Emerging technologies such as artificial intelligence, machine learning, and advanced robotics promise to further enhance the precision and efficiency of crop protection practices. These innovations will likely lead to even more targeted applications, reduced chemical usage, and improved environmental outcomes.
The journey from simple hand-pumped devices to today’s high-tech sprayers illustrates the agricultural industry’s commitment to innovation and sustainability. By embracing these advanced technologies and practices, farmers can protect their crops more effectively while minimizing their environmental impact and ensuring the long-term viability of their operations.
